Micro duct End Caps with Locking Clips

Ask Lasest Price
Brand Name :	Yogel
Model Number :	DI-ECL-5/3.5-T
Certification :	RoSH
Price :	USD 0.3 to 0.75 per Set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	200,000 Sets per Month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Micro duct End Caps with Locking Clips

Microduct Connectors & Sealing

Direct Install – Blown Fiber Push-fit

End Caps with Locking Clips

Description

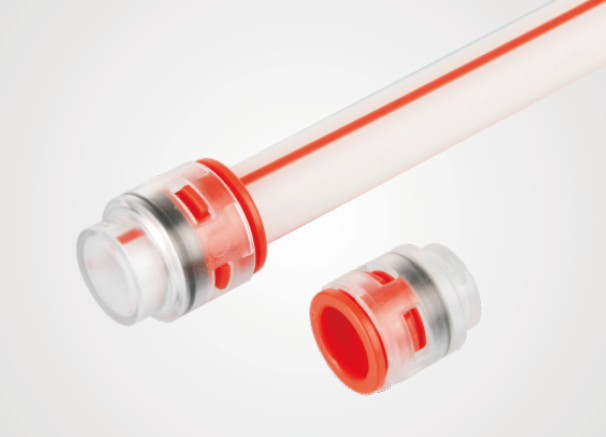

The end cap for permanent or temporarily sealing of unused microducts to prevent obstacles such as water, mud, dust and so on. The microduct end cap can also be used in conjunction with the Gas and Water Block Connectors during installation of microducts into existing ducts.

The body is transparent for easy fault location and fix the problem easily during installation.

Features

Provides high-tensile, pressure-tight end seal for microducts
Base body made of impact-resistant material (proven with spade test- followed by pressure test)
Transparent base body for visual inspection of the connection
Clamping teeth made of corrosion-free spring steel (tested according to EN 61386‑24 or EN 61386‑1)
Pre-fitted locking clips prevent accidental disengage when installed
Suitable for direct bury below ground and blow-in pressures up to 15 bar
Internal pressure test according to DIN 16874 (170 h/80 °C/4.0 MPa)
Can be removed and reused if necessary
Also suitable for in-house use, flame-retardant according to EN 61386-22 and halogen-free

Structure & Material

Micro duct End Caps with Locking Clips

No.	Item	Material & Description
1	Body	Polycarbonate
2	Seal / O-Rings	Nitrile Rubber (NBR)
3	Washer	Polyacetal
4	Internal Teeth / Grip Ring / Lock Claws	Stainless-Steel
5	Collar	Polyacetal
6	Collet	Polyacetal
	OD	Outer Diameter
	ID	Inner Diameter
	DI	Direct Install
	DB	Direct Bury

Notes:

Please confirm the microduct outer diameter whether has damaged or scratches, connection face must be clean.
Please confirm the microduct outer diameter nominal tolerances meets土0.1mm.
Please make sure the connection microduct end face is cut into rectangular plane.
Please confirm the microduct should be through the sealing ring, have been pushed to the end of the joint, until it couldn't go far again.
After connecting the microducts, must check whether the duct can pull, then put into use.
When disassemble the microducts, please make sure the pressure is 0.

Specifications

Blowing Pressure	Between temperatures of -10°C and +40°C, all listed connector sizes can be used for blowing operations at pressures up to 16bar. Between +40°C and +65°C, blowing pressures for 10mm and larger should not exceed 10bar.
Gas Tightness	Leakage at 8 bar gas pressure: 1ml/minute approx. Leakage at 0.7 bar gas pressure: 0.01ml/minute approx.
Water Ingress	The connectors shall seal against a 6m head of water
Insertion force	50N max (5kg)
Retention force (collet not held in)	25N min (3mm m/d) 125N min (8mm m/d) 55N min (5mm m/d) 125N min (10mm m/d)

Order Information

Specification	Duct OD (mm)
End Cap ECL-3	3
End Cap ECL-4	4
End Cap ECL-5	5
End Cap ECL-6	6
End Cap ECL-7	7
End Cap ECL-8	8
End Cap ECL-8.5	8.5
End Cap ECL-10	10
End Cap ECL-12	12
End Cap ECL-12.7	12.7
End Cap ECL-14	14
End Cap ECL-16	16
End Cap ECL-18	18
End Cap ECL-20	20
End Cap ECL-22	22
