Outdoor FTTA Water-proof Mini-SC/APC Reinforced Cable Assemblies for Harsh Environment Interconnect

Harsh Environment Interconnect

FTTA Long Haul System Water-proof Connectors

Outdoor Mini-SC/APC Reinforced

Cable Assemblies

Description

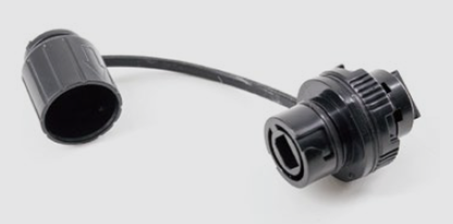

Mini-SC/APC reinforced connector is a small water-proof SC simplex connector designed for outdoor harsh environment interconnect. It is made of PEI material, which is a special plastic type resistant to high and low temperature, acid and alkali corrosion, and ultra-violet. Up to IP67 level, the unique screw mount interface design is compatible with HW equipment ports. It can be used as assembly of 3.0 to 4.8mm simplex round cable or FTTH flat drop cable.

Features

Low insertion loss & High return loss
Connectors compliant with Telcordia GR-326, IEC 61754
The cable fulfills 1301-TOL 405 9009
Mechanical and environmental tests in accordance with IEC 60794 -1-2
RoHS compliant

Applications

Multi-purpose Outdoor
Fiber optic communications in harsh environments
HW water-proof fiber equipment with SC ports
Remote wireless base station
FTTx solutions

Dimensional Diagrams

1. SC/APC Simplex Cable Assemblies

2. Product Structure

No.	Designation	Description
1	Cable	Outdoor Optical Cable, G657A2, Single-mode, 1 Core with 0.9 mm Fiber, OD 4.8 mm, Black LSZH
2	Transition	Heat Shrinkable Tube, Black
3	Protective Hood	Flexible Protective boot for strength relief
4	Connector	SC/APC Simplex for Single-mode Fiber
	SC Inner Core	Inner Housing for SC Connector, White
5	Dust-proof Cap	Dust-proof for connector ferrule
6	Cable Assembly Cap	Protective Water & Dust-proof Cap while transporting

Fiber Structure

Standards	ITU G.657 A2 / IEC60793-2-50 B6_a2
Cladding Diameter	125 ± 0.7 μm
Coating Diameter (Uncolored)	245 ± 7 μm
Concentricity Error Core / Cladding	≤ 0.5 μm
Concentricity Error Cladding / Coating	≤ 12.0 μm
Cladding Non-Circularity	≤ 1.0 %
Coating Non-Circularity	≤ 6.0 %

Fiber Requirements

Cable Cut-Off Wavelength λcc	(nm)	≤ 1260
Polarization Mode Dispersion	(ps /√km)	≤ 0.2
Zero Dispersion Wavelength λo	(nm)	1300 - 1324
Zero Dispersion Slope S0 at λo	(ps/nm2•km)	≤ 0.092
Attenuation Typical, (In Cable)	1310 / 1550 nm (dB/km)	≤ 0.35 / ≤ 0.21
Attenuation Maximum, (In Cable)	1310 / 1550 nm (dB/km)	≤ 0.40 / ≤ 0.25
Chromatic Dispersion	1310 / 1550 nm (ps/nm•km)	≤ 3.5 / ≤ 18.0
Bending Loss	1550 nm, R = 7.5 mm (dB, 1 turn)	≤ 0.5
	1550 nm, R = 10 mm (dB, 1 turn)	≤ 0.1
	1550 nm, R = 15 mm (dB, 10 turn)	≤ 0.03

Cable Structure

Outdoor FTTA Water-proof Mini-SC/APC Reinforced Cable Assemblies for Harsh Environment Interconnect

Cable Specification

Item		Specifications
Fiber Count		1
Fiber type		9/125 (G.657A2)
Strength member		Aramid yarns
Tight-buffered Fiber	Tight buffer color	White
	Tight buffer material	PVC
	Tight buffer diameter	0.9±0.05mm
Sub-unit Cable	Sub-unit color	White
	Sub-unit material	LSZH
	Sub-unit diameter	2.9±0.1mm
Jacket	Jacket color	Black
	Jacket material	LSZH
	Cable diameter	4.8±0.2mm
Cable weight(kg/km)		25
Min. bending radius(mm)		10D
Attenuation (dB /km)		≤0.4at1310nm,≤0.25at1550nm
Short tension(N)		450
Short crush(N/100mm)		3000
Operation temperature		-40 to +80 ℃

Connector Requirements

Item		Specifications
Type		SC Inner Core (without Green Housing)
Color	Body / Cap	White / Green
Polishing		APC
Insertion Loss	Reference / Random	≤0.30 /0.50 dB, IEC 61300-3-4 method B
Return Loss		≥ 60 dB,IEC 61300-3-6 Method 1 or Equivalent
End Face Geometry	Radius	7 - 25 mm, IEC 61300-3-16
	Vertex Offset	< 50 μm, IEC 61300-3-15
	Fiber Protrusion	≤ 50 nm, IEC 61300-3-23
	Fiber Withdrawal	≤ 50 nm, IEC 61300-3-23

Mechanical Specifications

Item	Test Standard	Limit Value	Test Result
Tensile Strength	IEC 60794-1-2 E1A	≥ 300 N (Long Term)	Pass
Installation Test	1/102 64-COH 109 2099	Dwell Time: 24h	Pass
Crush Resistance	IEC 60794-1-2 E3 ≥500mm, 60s, 3 Times	3000 N (100mm Plate) 4000 N (25mm Steel Mandrel)	No Damage to Sheath No Damage to Sheath
Bending Radius	IEC 60794-1-2 E11A	≥20mm (Cable) ≥10mm (Fan Out)	Pass Pass
Pulling	IEC 61300-2-4 0.5 Meter from Connector	End A≥100N (Straight), 120s ≥50N (Right-angle), 120s End B≥50N (Straight), 120s	Insertion Loss Variation ≤ 0.2 dB Final Value ≥ 50 dB IP65
Torsion	IEC 61300-2-5 0.5 Meter from Connector	≥ 15N (Straight), 25 Cycles ± 180°	Insertion Loss Variation ≤ 0.2 dB Final Value ≥ 50 dB
Compression Force (Ferrule)	IEC 61300-3-22	5 - 8 N	Pass
Temp. Cycling	IEC 61300-2-22 Cable Coiled Loosely, Diameter ≥ 600mm(500m) Diameter ≥ 300mm(3m)	-40°C to +75°C Dwell time: 6h (500m) Dwell time: 1.5h (3m) 12 cycles	Insertion Loss Variation During ≤ 0.5 dB, After ≤ 0.4 dB Final Value ≥ 50 dB

Environment Specifications

Operating Temperature	-40°C to +80°C
Installation Temperature	-15°C to +60°C
Storage Temperature	-40°C to +75°C
Water Penetration	Pass, IEC 60794-1-2 F5B
Vertical Flame Spread	Pass, IEC 60332-3-24
Connectors Flame	UL 94 V-0
UV Resistance	Pass, ISO 4892-3

Cable Length and Tolerances

Length and Tolerance Requirements
Length (m)	Tolerance (mm)
L≤ 5	±50
5 ＜ L ≤ 50	± 1%
L＞50	± 1000

Banned and Restricted Substances

RoHS 2002/95/EC Compliant

Options

HW Mini-SC Adapters (Can be used on NAPs and Telecommunication Equipment)

Compatible with HW Mini-SC Cable Assemblies (Adapters and Assemblies can only be used in PAIRS)

Order Information

Connector End A / Water & Dust Proof- Connector End B,

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length

Example:

SC/APC-SC/APC, Mini Reinforced Assemblies

Black LSZH, 4.8mm, Simplex, G.657A2, 35 meters
