Step-Index Multimode Fiber Optic Patch Cables

200nm to 1200nm (UV-VIS) or 400nm to 2500nm (VIS-IR)

FC-style Connector

Description

Our multimode (MM) fiber optic patch cables consist of step-index multimode fiber and have FC/PC connectors with ceramic ferrules on both ends (stainless-steel ferrules option). They are available from stock in 1 m, 2 m, and 5 m lengths. Custom cables are available.

Each patch cable includes two protective caps that shield the ferrule ends from dust and other hazards. Additional Plastic Fiber Caps and Metal Threaded Fiber Caps for FC/PC-terminated ends are sold separately.

These cables are not designed for applications that require the fibers to carry high optical powers, as excessive powers can cause the epoxy used in the connectors to experience catastrophic heating. We offer alternate cabling options, in addition to un-connectorized fibers, that are compatible with high optical powers. Please contact us for details.

If you do not see a stock cable suitable for your application, please contact us to request a cable that meets your specific needs.

Notes:

1. The Recommended FC/PC Connector Subassemblies is SENKO Brand from Japan, we also have store SEIKOH GIKEN Brand from Japan, ZANNECT Brand from China, if you have questions about this part, please contact us for details.
2. We priority select Nufern/Coherent Brand Multimode Fiber from the USA, and also have store various Premium Specialty Fibers from China.
3. Custom Tubing diameter, color & material are available.
4. SEIKOH GIKEN 2.0mm Narrow Key FC-FC female Mating sleeve (Adaptor Model No.: SAN-1) is available.
5. Made in China.

Features

• Available in Wavelength Ranges between 350 to 2200 nm
• Narrow Key (2.0 mm) Aligned to Slow Axis (Fast Axis available)
• Typical Return Loss of 60 dB
• 8° Angled Step Ceramic Ferrules (Conical Ceramic Ferrules options)
• Ø900 µm or Ø3.0 mm Blue-color Protective Outer Jacket (Diameter, Color & Material options)
• Custom Connector and Length Options Available

Applications

• Spectroscopy
• Illumination
• LED Energy Transmission
• Medical Instruments
• Optogenetics
• Fiber-coupled diode lasers
• Couplers and pump combiners

FC Connector Subassemblies*

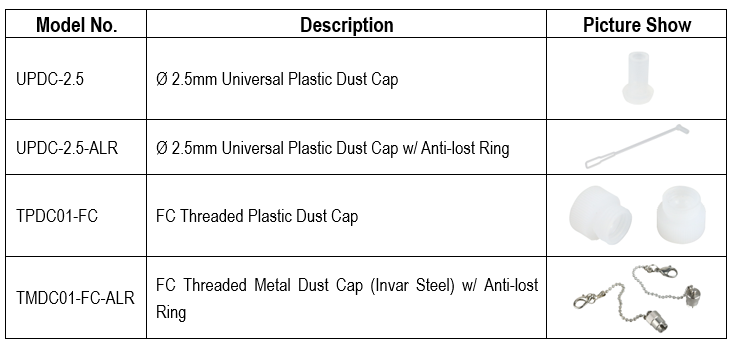

FC Dust Caps

Pure Silica Core Specialty Multimode Optical Fibers*

*Custom specialty fiber available. We have almost all series of Nufern/Coherent Brand Fiber in store for immediate delivery, and some selected premium optical fibers made in China. Please contact us for details.

1. Coherent Multi-Mode Fibers: (Only list part of this series)

2. Coherent NuBEAM series Beam Delivery Fibers: (Only list part of this series)

* Custom Nufern/Coherent Brand Fiber available.

Selected Multimode Fibers

1. UV Optimized Silica Fiber

Description

UV Optimized Silica Fiber’s 0.22 NA step-index multimode fibers feature a pure silica core with a fluorine-doped silica cladding and are available with high hydroxyl ion (OH) concentrations for UV to visible (200nm to 1200nm) applications. Widely used in USA (Ultraviolet Spectrum Analysis) and Beam/Power Delivery.

Specifications

* Solarization may occur at wavelengths below 300 nm

UV to Visible Transmission (200 – 1200 nm), High OH

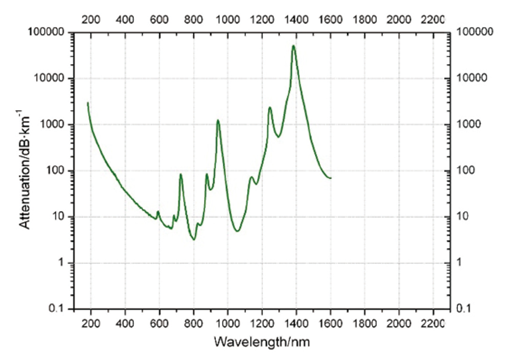

Performance Plot

2. Near-infrared Optimized Silica Fiber

Description

Near-infrared Optimized Silica Fiber’s 0.22 NA step-index multimode fibers feature a pure silica core with a fluorine-doped silica cladding, and are available with low hydroxyl ion (OH) concentrations for visible to NIR (400 – 2500 nm) applications.

Specifications

Visible to IR Transmission (400 – 2500 nm), Low OH

Performance Plot

Furcation Tubing

Order Information

1. Connector Brand
2. Connector End A-Connector End B, Connector Type
3. Fiber Type: Wavelength Range, Core/Cladding Diameter, Core NA, Coating Diameter, Coating Material, Attenuation Plot, etc.
4. Furcation Tubing Type
5. Cable Length

Example:
