MPO/MTP Pre-terminated Patch Cords/Cables

Description

MTP/MPO Fiber Optic Patch Cable consists of multi-core fiber optic cable and corresponding 4/8/12/24 core high-density MPO/MTP connector. The connector might be female or male with guide pin. The fiber support single-mode and multimode, the single-mode fiber includes G.652D / G.657A1 / G.657A2, the multimode fiber includes OM1 / OM2 / OM3 / OM4 / OM5 or bend-insensitive multimode cable.

With strong MPO/MTP product design and manufacturing ability, we could provide products tailed to customer requirements. All products we delivered with excellent performance and reliability.

Features

• Customized, high adaptability
• Optional different fiber cores and cable structures for different installation requirements
• PVC, LSZH, OFNR, OFNP cable jacket available
• Improved and simplified cabling, reduce cabling spacing
• All patch cables are 100% tested, test report supplied with each cable assembly
• Interferometer, Insertion Loss, Return Loss, and Visual Final Inspection testing, all measured values are electronically archived

Standards Compliance

• TIA/EIA-568-C
• IEC-61754-7
• NFPA 262 (OFNP) or IEC 60332 (LSZH)
• IEC-60793
• GR-1435-CORE

Applications

• Data Center
• Fiber to the home
• High-density fiber optic cable management
• 40Gb/s or 100Gb/s Applications

Connector Specifications

MTP/MPO Connector Geometry Parameters

Item	X-axis		Y-axis
	Min	Max	Min	Max
Radius of Curvature (mm)	500	-	50	-
Polishing Angle	0-0.2	0+0.2	8-0.2	8+0.2
Fiber Height (nm)	1000 ~ 3000
Max Fiber Height Error (nm)	600
Adjacent Fiber Height Error (nm)	-300 ~ +300
Avg. Fiber Height Error (nm)	-300 ~ +300
Central Concave (nm)	300
Interferometer view of MTP Connector

Fiber Specification

*The effective modal Bandwidth for multimode is 850nm.

Patch Cable Structure

Notes:

Fiber Core: 2, 4, 8, 12, 24

Cable Sheath Color:

Yellow – SM Fiber Cable (OS1OS2)

Orange – MM Fiber Cable 62.5/125 (0M1), 50/125 (OM2)

Aqua –MM Fiber Cable 50/125 (OM3)

Violet –MM Fiber Cable 50/125 (OM4)

Strength Member: Aramid yarn

Color Coating Fiber: (2 to 24)xφ250μm colored fiber, international standard color code (YD/T 901-2001), and 12 circular chromatography

Standard Cable Specifications

Cable Length and Tolerances

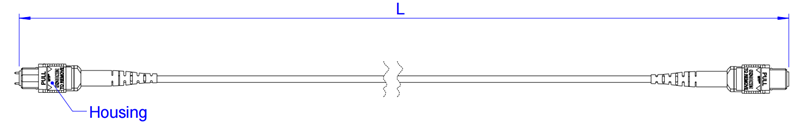

Technical Drawing

Order Information

1. Connector Brand:

SENKO, US CONEC, etc.

2. Connector Loss:

Standard Loss or Low Loss

3. Connector End A-Connector End B:

MPO or MTP / PC or APC, Male or Female

4. Cable Jacket:

LSZH, PVC, OFNR, OFNP, etc.

5. Cable Diameter:

2.0mm, 3.0mm, 3.6mm, 4.5mm, 5.0mm, and 5.5mm Round Cable, Bare Ribbon Fiber, or Flat Ribbon Cable

6. Fiber Count:

4, 8, 12, 24, etc.

7. Fiber Type:

G.652D, G.657A2, OM1, OM2, OM3, OM4, OM5, etc.

8. Cable Length:

1 to 999 meters

9. Polarity:

Type A, Type B, Type C

Connector Brand, Connector Loss,

Connector End A - Connector End B,

Cable Jacket, Fiber Count, Fiber Type, Cable length,

Polarity

Example:

MTP Pre-terminated Patch Cables,

US CONEC Brand, Standard Loss,

MTP/PC Male to MTP/PC Female,

Aqua LSZH, 3.0mm, 8 Cores, OM3, 10 meters,

Type A
