MPO/MTP Pre-terminated Cassettes / Modules

Description

The MPO/MTP module Cassettes are mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame, or client end.

Features

• Adopts high-quality engineering plastics and Aluminum alloy material, with electrostatic plating surface, outstanding in appearance and user friendly.
• MPO faceplates can be upgraded easily.
• All the front ports are with mark No., easy to identify.
• Quick and easy installed, flexible in configuration, and easy to management

Standards Compliance

• TIA/EIA-568-C
• IEC-61754-7
• NFPA 262 (OFNP) or IEC 60332 (LSZH)
• IEC-60793
• GR-1435-CORE

Applications

• Data Center
• High-density fiber optic cable management
• 40Gb/s or 100Gb/s Applications

Connector Specifications

MTP/MPO Connector Geometry Parameters

Item	X-axis		Y-axis
	Min	Max	Min	Max
Radius of Curvature (mm)	500	-	50	-
Polishing Angle	0-0.2	0+0.2	8-0.2	8+0.2
Fiber Height (nm)	1000 ~ 3000
Max Fiber Height Error (nm)	600
Adjacent Fiber Height Error (nm)	-300 ~ +300
Avg. Fiber Height Error (nm)	-300 ~ +300
Central Concave (nm)	300
Interferometer view of MTP Connector

Fiber Specification

*The effective modal Bandwidth for multimode is 850nm.

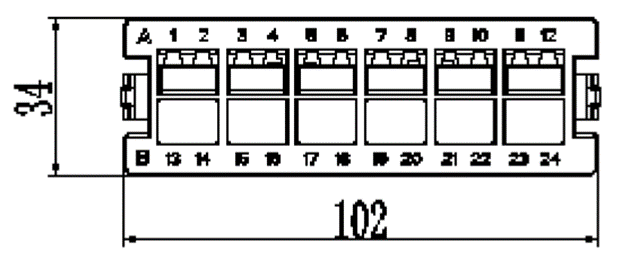

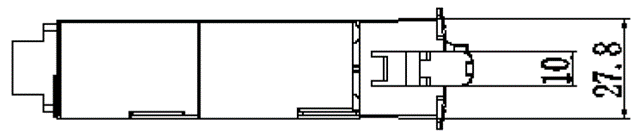

Product Dimensions

Order Information
