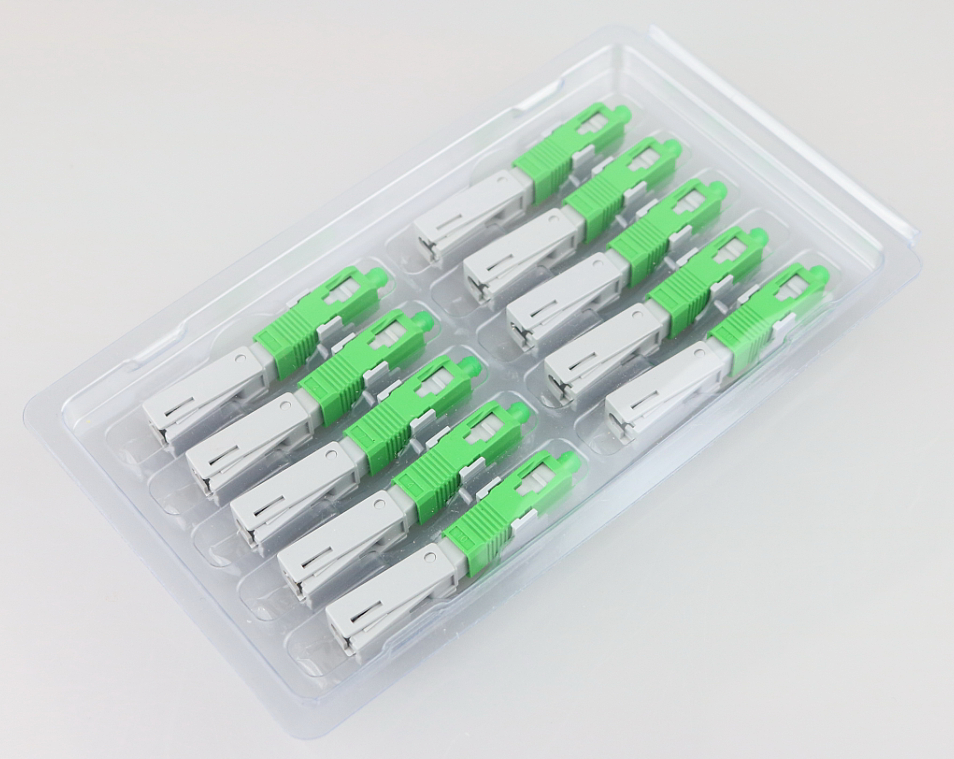

Field Assembly Optical Connector

Model No.: FAOC3102-2

Description

Field Assembly Optical Connector (FAOC), also referred to as Field Installable Connector or Optical Fast Connector, is designed to enable easy and quick fiber termination on-site with unique V-groove mechanical splice technology and double locking system, therefore providing significant support for users in the construction of FTTH network.

Features

• Compatible with factory-assembled conventional standard SC connectors
• Easy and Quick assembly (within 2 minutes) without special tools
• No need for electric power (Fusion Splicer, etc.), polishing, epoxy, or adhesive on site
• Reliable assembly with assembly guide jig (Drop Cable Holder)
• Available splice inspection with a visible light source or optical power meter on site
• Available to re-assembly process after Termination more than 5 times

Specification

Accessories

Name	Model No.	Description	Picture

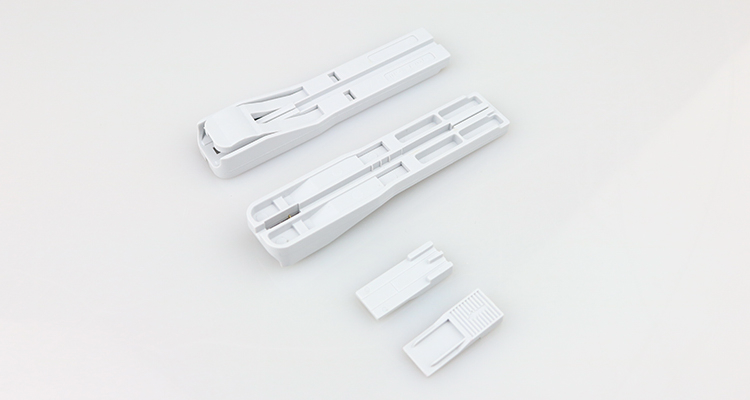

Drop Cable Holder	DCH20-9	Also referred to as a guide jig or fixed-length cutting template, used to strip the fiber buffer coating with one side and fixed-length cutting with the other side
Cover-open Tool	COT31-FAOC	Used to open the back cover when reassembling
User Manual		For SC/UPC Connector
User Manual		For SC/APC Connector

Notes:

1. Standard Configuration: 2pcs Drop Cable Holder, 5 pcs Cover-open Tool, and 1pcs User Manual for 100pcs Connector, if you need more, please contact our sales representative.

2. The width of the Drop Cable Holder is 16mm, compliant with Fujikura brand fiber cleaver standard, so it can be compatible with almost all the fiber cleavers on market, including Sumitomo brand fiber cleaver standard.

3. The default Fixed Cutting Length of Drop Cable Holder: Buffer Coating Length - 20mm, Bare Fiber Length after Cutting - 9mm, total fiber length without a jacket is 29mm (Buffer fiber + Bare fiber), this is the most important part, if the length changes, the splicing result maybe fail. *

4. For more details about how to use these accessories, please check the User Manual.

Order Information

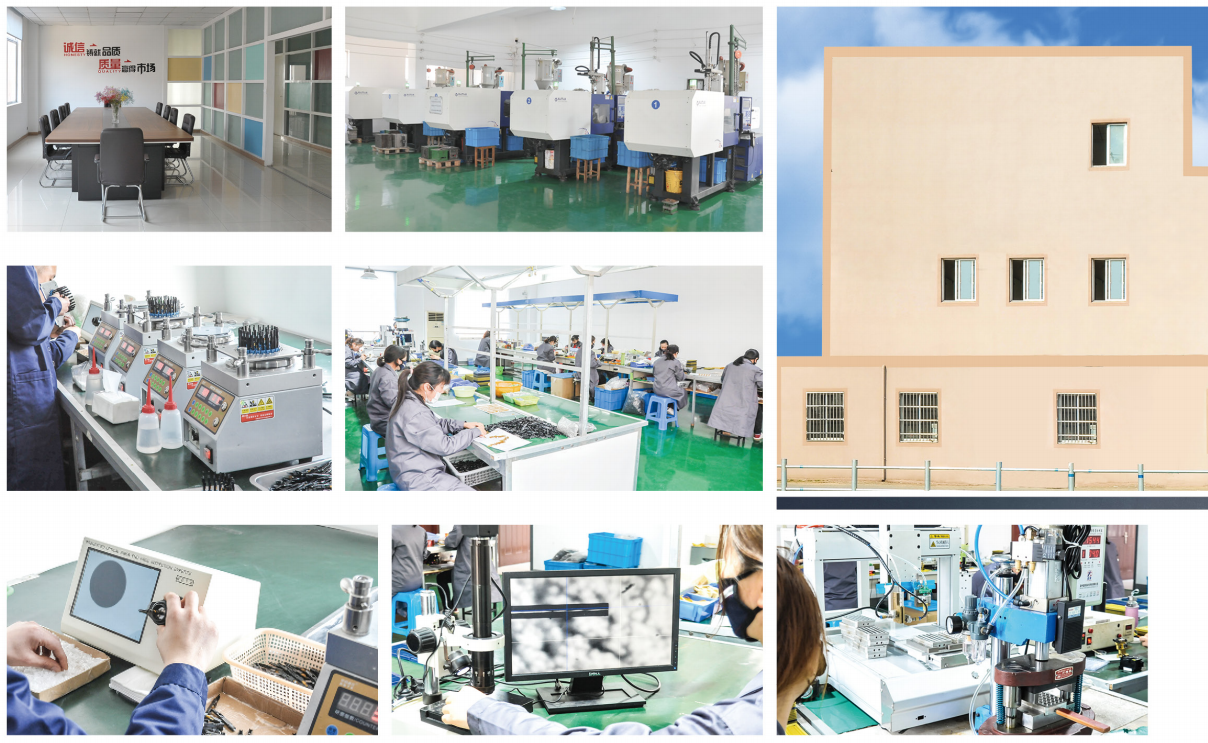

Shanghai Yogel Communication Equipment Co., Ltd. is a professional company engaged in passive optical network (PON) products, fusion splicers&accessories and fiber optic testing & maintaining tools.
