Optical PON Power Meters

G/EPON & RF Video – 1310/1490/1550nm,

NG-PON1 (10G-EPON, XG-PON) – 1270/1577nm, and

NG-PON2 (TWDM-PON) - 1535nm (1524nm to 1544nm) &

1600nm (1596nm to 1603nm), Simultaneously Display

Optical Communications Test Applications

--- FTTx PON acceptance test

--- FTTx PON fault isolation

Description

Next-generation passive optical networks (PONs) will, in most cases, leverage the existing outdoor plant infrastructure already in use for current PON customers. This adds a level of complexity to PON testing since multiple wavelengths will reach the end user at the service activation location. Having the right instrument is vital to avoid meaningless test results or false positives.

PPM22-CEx-SITV PON Power Meter can be used in legacy and next-generation PON scenarios. It is compatible with single-layer PON and RF overlays as well as mixing a next-generation layer on top of it. The PPM22-CEx-SITV affords the unique ability to test several next-generation PON technologies (XGS-PON, NG-PON2) with a single unit. With the same PPM22-CEx-SITV test unit you can tackle today’s increasing field complexities and you are already equipped for tomorrow’s PON challenges.

Applications

• Single-layer PON service activation
• Multi-layer PON service activation
• Multiple PON technologies supported on a single unit:
  • GPON (ITU-T G984.2)
  • EPON (IEEE 802.3)
  • XG(S)-PON (ITU-T G987.2)
  • TWDM NG-PON2 (ITU-T G989.2)
  • RF overlay

Features

* Compatible with GPON, EPON and HFC networks

* Supports 10G-capable PON and NG-PON2 networks

* Automatically identify different PON network wavelength

* Pass-through mode for ONT/ONU, In-line and burst mode testing

* Internal memory for 500 records with timestamp

* Saved test data downloadable to PC using Data Management Software

* User self-calibration can be retrieved in computer through the software

* Convenience for threshold setting, which can set the threshold on the tester

* Offers up to 10 different threshold sets in total

* Backlit display

* 10 minutes Auto-off function can be activated or deactivated with keypad operation

PPM Software

* Download testing data in the meter to a PC via USB

* Download/Upload threshold settings to the meter

* Calibration

Specifications

Typical Connect

Order Information

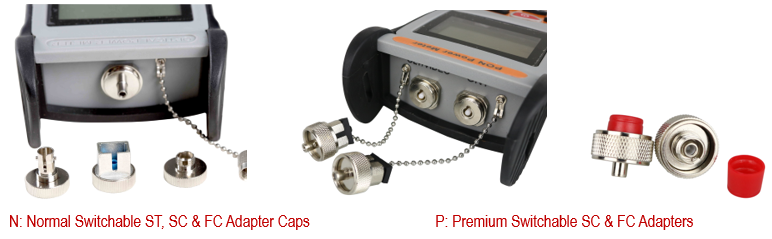

1. Interface:

N: Normal Switchable SC & FC Adapter Caps

P: Premium Switchable SC & FC Adapters

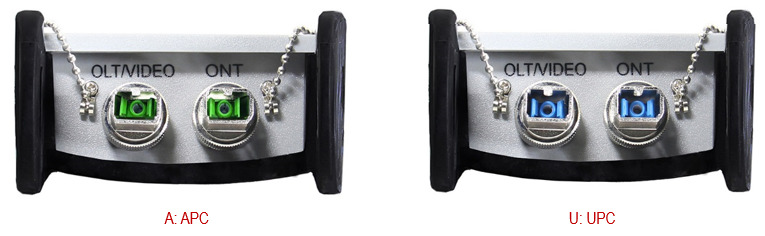

2. Polishing:

U: UPC

A: APC

Samples:

Standard Accessories
