Wavelength Division Multiplexers
Coarse WDMs

CWDM Mux/Demux Module

(4, 8, 16, 18 - Channel)

Description

Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low-temperature sensitivity, and epoxy free optical path.

Features

* High isolation

* Low insertion loss

* Low polarization sensitivity

* Wide passband

* Excellent stability and reliability

* Epoxy free on the optical path

Applications

* WDM systems for metro/access network

* Telecommunications

* Optical add/Drop multiplexing

* Network monitoring

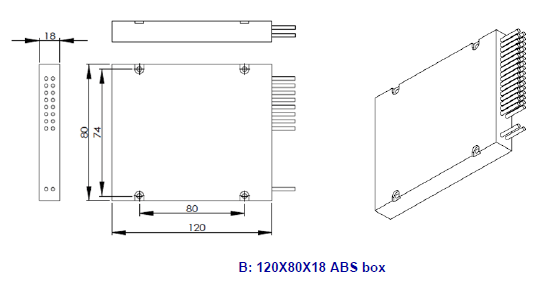

Package Dimension

Specifications

* The above specification is without connectors

**Other specifications can be made on customer request.

Order Information

Number of Channels (Configuration),

Wavelength, Package Type,

Common Port: Connector, Cable Diameter, Cable length,

Mux/Demux Ports: Connector, Cable Diameter, Cable length.

Example:

4 Channels,

1270/1310/1470/1530nm, ABS Module type,

Common Port: LC/UPC, 900μm, 1 Meter,

Mux/Demux Ports: LC/UPC, 900μm, 1 Meter.

CWDM Module

*Note: Customized Color-coded Combination is Available.
