    6 Motor 150μM 0.02dB Fiber Fusion Splicing Machine

    Ask Lasest Price
    Brand Name : Yogel or OEM
    Model Number : x-900
    Certification : ISO9000 ,ROHS,CE
    Price : Negotiate
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 500 pcs/ month
    Delivery Time : 3-5 days after despoit
    • Product Details
    • Company Profile

    6 Motor 150μM 0.02dB Fiber Fusion Splicing Machine

    Optical fiber equipment 6 motor x-900 Multi-function optical fiber fusion splicing with cheap price


    Features:

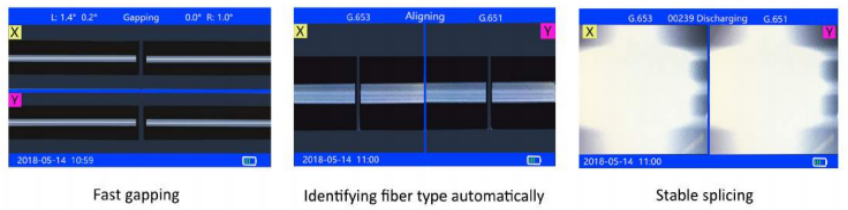

    * 6 motors accurate core to core alignment

    * Automatic fiber type identification

    * 6s stable splicing & 16s fast heating

    * Automatic & real-time ARC calibration

    * Bluetooth remote assistance system

    * Upgraded CPU with 30% power saving

    * Real-time heating temperature monitoring

    * Anti-shock, Anti-dust and waterproof

    * Apply to bare fiber, patch cord,drop cable etc


    Specifications:

    Applicable fiber

    SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
    Applicable fiberSM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
    Diameter of cladding80 -150μm
    Diameter of coating160 – 900μm
    Typical splice lossSM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
    Return loss>60db
    Fiber cleaved length10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
    Splicing program40 groups
    Operate modeManual, Automatic
    Auto-heatingAvailable
    Typical splicing time6 seconds
    Tube heating time16 seconds for 60mm and 40mm shrinkable sleeves
    Fiber view magnification250X(X or Y view), 125X(X and Y view)
    Viewing method and display2 CMOS cameras, 5.0 inch color LCD monitor
    Storage of splice result4000 results
    Loss evaluationAvailable
    Tension test1.8-2.2N
    InterfaceGUI menu interface, easier operation
    Battery capacity5200mAh Li-battery, typical 250 cycles(splicing and heating),support independent charging
    Power supplyAdaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode lifeMore than 4000 ARC discharges, can be replaced conveniently
    TerminalsUSB 2.0 port, for uploading splice results and upgrading software
    Operating conditionAltitude: 0-5000m, Humidity: 0-95%, Temperature: -25℃~+50℃;Wind speed: max 15m/s
    Dimension160mm(L)x136mm(W)x140mm(H)
    Weight2.2kg including battery

    Advantage:



    Standard Package:
