G.657A2 0.9mm 1m 2x64 Steel Tube PLC Splitter

Ask Lasest Price
Brand Name :	Yogel
Model Number :	mini-2x64
Certification :	ISO9001
Supply Ability :	50000pcs/month
Delivery Time :	3-7days

Add to Cart

Product Details
Company Profile

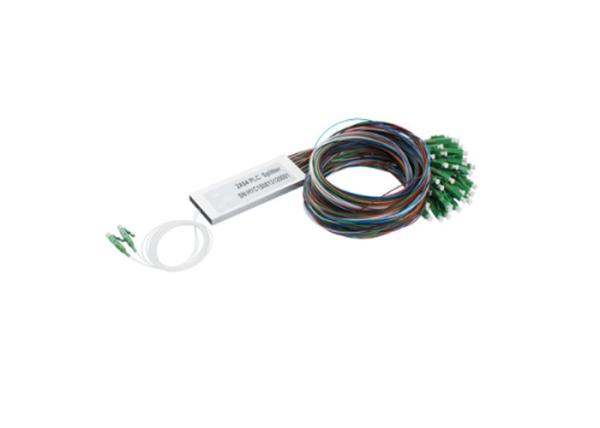

G.657A2 0.9mm 1m 2x64 Steel Tube PLC Splitter

2x64 SM -G.657A2 PLC Splitter Steel Tube type fiber optic cable 0.9mm 1m with SC/APC connector

Description

PLC splitter (Planar Lightwave Circuit Splitters) is a passive device that does not require extermal engery, as long as it has input light.PLC Splitter is key component in FTTx including splitting ratio from 1(2) x 2, to 1(2) x 64, highly stable across temperature and wavelength providing low insertion loss, low input polarization sensitivity, excellent uniformity, and low return loss. Avalible in Small Form Factor (Nickel Copper Alloy Encapsulated Case)(Blockless) , Module (ABS Box) and Cassette (Slot-In) type.. Also comes in various fan-out configurations, tight fiber to 3mm jacket, to with preterminated fiber optic connectors (SC/FC/ST/LC with APC/UPC).

Features

* Small size, highly integrated, can be installed in various of cross-connection cabinet directly, and do not need large space for it.

* Low insert loss, high uniformity.

* Low PDL.

* High return loss.

* Wide wavelength coverage.

* Anti-oxidant, anti-corrosion, excellant environment stability.

* Good mechanical property.

Applications

FTTx (FTTB, FTTH, FTTC)
Passive optical networks (PON)
Local area networks (LAN)
CATV systems
Test equipments

Technical Parameter

Parameter		Unit		1×2	1×4	1×8	1×16	1×32	1×64
Fiber Type		/		G.657A, or customized
Operating Wavelength		nm		1260~1650
Insertion Loss	P	Max	dB	4.0	7.0	10.4	13.5	16.8	20.5
	S	Max	dB	4.2	7.3	10.6	13.8	17.1	20.8
PDL		Max	dB	0.2	0.3	0.3	0.3	0.3	0.5
Loss Uniformity		Max	dB	0.6	0.8	1.0	1.4	1.6	2.0
Return Loss		Min	dB	55(P Grade)/50(S Grade)
Directivity		Min	dB	55
Operating Temperature		℃		-40 ~ +85
Storage Temperature		℃		-40 ~ +85
Dimension(L×W×H)			mm	40×4×4			50×7×4		60×12×4
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each.

Parameter		Unit		2×2	2×4	2×8	2×16	2×32	2×64
Fiber Type		/		G.657A, or customized
Operating Wavelength		nm		1260~1650
Insertion Loss	P	Max	dB	4.0	7.3	10.6	13.9	17.2	20.8
	S	Max	dB	4.2	7.5	11.0	14.5	17.5	21.0
PDL		Max	dB	0.2	0.3	0.3	0.3	0.3	0.5
Loss Uniformity		Max	dB	0.8	1.0	1.2	1.5	1.8	2.0
Return Loss		Min	dB	55(P Grade)/50(S Grade)
Directivity		Min	dB	55
Operating Temperature		℃		-40 ~ +85
Storage Temperature		℃		-40 ~ +85
Dimension(L×W×H)			mm	40×4×4			50×7×4		60×12×4
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each.
