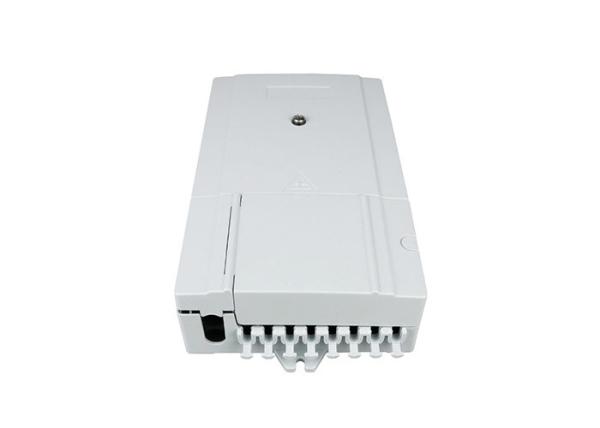

    CATV 2inlet 8outlet Fiber Optic Termination Box

    Ask Lasest Price
    Brand Name : Yogel/OEM
    Model Number : FDMS-WS/ADT-8ZT
    Certification : ISO9000
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000pcs /Month
    Delivery Time : 3-7 work days after despoit
    • Product Details
    • Company Profile

    CATV 2inlet 8outlet Fiber Optic Termination Box

    Fiber Optic Box Manufacturing Outdoor 8 Cores Gray Optical Terminal Access Box


    Introduction:

    8 cores FTTH fiber terminal cable access box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.


    The entry 2ports can use multi-fibre cable maximum diameter 12mm. The output ports 8pcs


    Meanwhile, the unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.


    Product Show:


    Feature:

    • Water-proof design with IP65 Protection level

    • Integrated with splice cassette and cable management system

    • Manage fibers in a reasonable fiber radius condition

    • Easy to maintain and extend the capacity

    • Fiber bend radius control more than 40mm

    • Suitable for the fusion splice or mechanical splice

    • 8 ports cable entrance for FTTH drop cable


    Application:


    •Widely used in FTTH access network.

    •Telecommunication Networks

    •CATV Networks

    •Data communications Networks

    •Local Area Networks


    Specification:

    Product nameFiber Optic Terminal Box
    ColorGray
    ModelFDMS-WS/ADT-8ZT
    Cable Ports2inlet 8outlet
    Cable diameterIn:10mm out: 5mm
    InstallationWall mount
    Max. Fusion16 fibers
    MaterialABS+PC
    PLC Splitter1x2,1x4,1x8 mini splitter
    Max. Adapter8pcs SC simplex without flange


    Our Service:


    1. OEM Manufacturing welcome: Product, Package...
    2. Offer free sample for testing
    3. Reply inquiry within 24 hours.
    4. After sending, we will track the products for you once every two days, until you get the products. When you got the
    goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer
    the solve solution for you.
