FTTH 2 in 2 out Fiber Optic distribution box Fiber Optic Joint Box Fiber Optic Termination Box

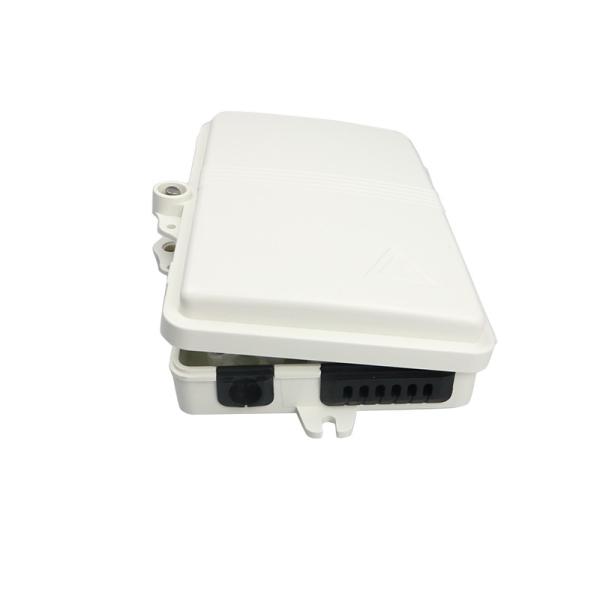

FAT-2A fiber access termination box is able to hold up to 2 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.

Features:

1. Water-proof design with IP-66 Protection level.
2. Integrated with splice cassette and cable management rods.
3. Manage fibers in a reasonable fiber radius condition.
4. Easy to maintain and extend the capacity.
5. Fiber bend radius control more than 40mm.
6. Suitable for the fusion splice or mechanical splice.
7. 1*2 Splitter can be installed as an option.
8. Efficient cable management.
9. 2 ports cable entrance for drop cable.

The feeding optical fiber cable input in optical fiber box from the bottom. Feeder diameter should not exceed 17 mm. Then,branching drop wire or patch cords and pigtails cables connect with feeder cable by the SC fiber optical adaptors, or splice protection sleeves and managing from optical terminating box to the active or another Optical Network Unit.

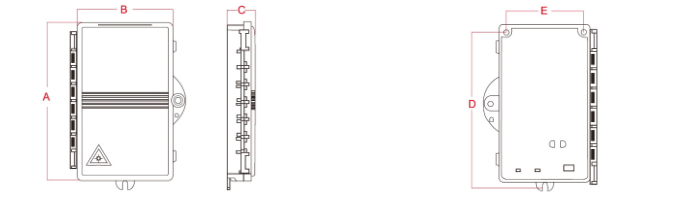

Material	Size	Max Capacity			Installation	Weight	Color
PC+ABS	A*B*C 168*120*32	SC 2 ports	LC 4 ports	PLC 1*2(SC)	D*E(mm) 153*88	0.2kg	Light Grey

FAQ

1. Are you manufacturer?
Yes!

2. How about the quality?
Our company's products are through the quality of the test, the indicators have reached the international standard.

3. Which currencies are supported?
Dollar, euro, RMB

4.What are the after-sales service?
In the face of service and quality problems,can be settled through friendly consultations,
as far as possible in accordance with customer needs, meet customer needs, meet product quality problems, we can free replacement of new products!

5. How does your factory do the quality control ?
Every product will be fully assembled and carefully tested before packing and shipping.

Thank you for your kind Visiting, Any question please contact me!
