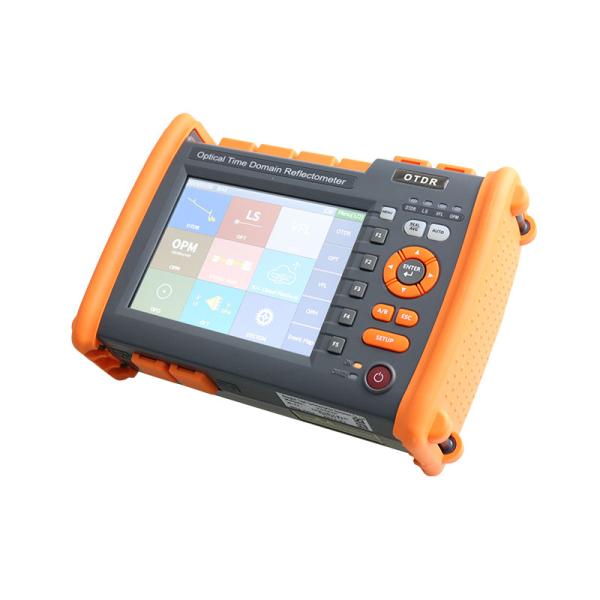

OTDR5600 Optical Time Domain Reflectometer-OTDR 1310/1550nm 32/30dB Eco-OTDR

Description

Hand-held Optical Time Domain Reflectometer of OTDR5600 Series is a newly hand-held and intelligent communication measuring device in accordance with the test of Optical fiber and Communication System. The product is used to measure the parameters like optical fibers, length of the optical fiber, loss, following quality and the like. It can quickly and accurately position the case point and fault point of the
optical fiber link. It can be widely used in the engineering construction, route maintenance and urgent repair of the Optical fiber and Communication System. It can also be used in optical fiber and optical cable development as well as production measurement. The product can effectively do help to the installation and construction of the optical fiber network, the following speedy and effective maintenance and the
troubleshooting test.

General Introduction
OTDR5600 is sturdy and durable with a novel and attractive appearance. The most succinct operation interface with a simple and intuitive
style is specially designed for the domestic users. The dual operation mode of press key and touch screen effectively simplifies the application of the users. You can obtain the test result by the one-click analysis and the events will appear on the main interface in a list form with the information of event number, type, location (distance), loss, reflex, gradient of the events (attenuation) and total loss. Intelligent power management mode is employed to the machine. The working duration of the machine can be more than 10 hours with the high-capacity lithium battery.

Features
* The novel and beautiful structural design of the appearance.
* The most convenient operation mode in the industry is as simple as available.
* ultra-short event dead zone can test the wire jumper of the optical fiber.
* It can test the circuit with light and give an alarm, avoiding existence of the equipment whose signal light is damaged in the optical fiber tested.
* High-power visible laser fault location function is equipped inside.
* USB interface can transfer the documents and make the report forms fast.
* Universal light output interface which is easy to be replaced enables a variety of interface tests.

Specifications

Note
* Ambient temperature +23℃±2℃, maximum test pulse width and the average number of times more than 500;
* Test condition of blind zone (range 500m, pulse width 10ns and channel III), reflection loss of fiber end face ≥45dB, typical value;
* Low brightness, not tested.

Standard Configuration
