Fusion-spliced sc upc fiber optic quick fast connector

Description:

These fusion-spliced, field installable connectors are factory-terminated, pre-polished and composed of four parts, can be easily assembled after splicing with one-touch, push-pull system. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap.

Fusion splice-on connector utilizes a fusion splicer to terminate the connector in the field, addressing return loss concerns present in analog optical networks. This advanced process yields true APC performance for SC/APC and FC/APC configurations.

This type splice-on connector is compatible with a variety of fusion splicers which have a set of required universal holder and heat oven.

Features:

- Easy and Quick assembly (within 2minutes) without special tools
- No need electric power, polishing, epoxy or adhesive on site
- Reliable assembly with assembly guide.
- Available splice inspection with visible light source or optical power meter on site
- Available to re-assembly process after Termination more than 5 times

- Success rate:>98% (for the first time)

- Low Insertion Loss & High Return Loss

Applications:

Fiber Termination in:

-RF-overlay FTTP networks

-Cable TV backbone networks

-Outside plant

-FTTH, FTTX solutions

-MDU FTTP Cabling

Central office connector replacement

Specifications:

Assembly Flow:

1.Fiber processing 2. Fiber splicing 3. Protection sleeve 4. Assembled connector shrinking

Structure:

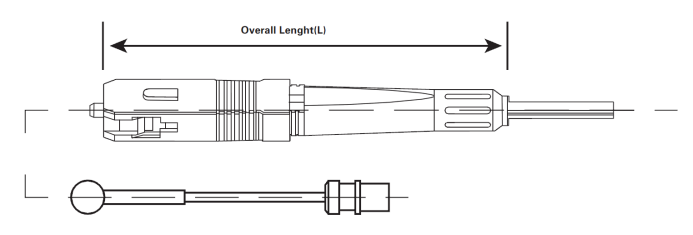

Dimension:

Overall Length(L): 55 mm
