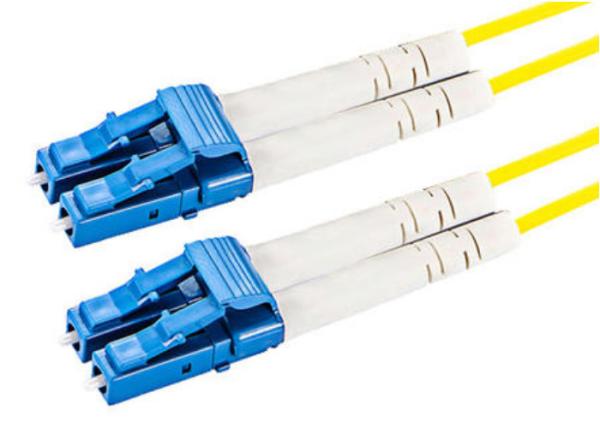

LC Duplex 2.0mm SM 1m 3m 5m Fiber Optic Patch Cord Fiber Optical Jumpern Fiber Optical Cable

A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".

Application field

1.Optical fiber communication systems engineering

2.Fiber optic data communication network

3.Fiber CATV engineering

4.Other optical technology tests

Features

1.The style is diverse, the interface is complete

2.Low insertion loss and added loss

3.Height of attenuation

4.High back loss, small volume, light weight

5.High stability, high reliability

Specification

Applicable connector type.	LC/UPC
Optical fiber type	SM
Test the wavelength	1310nm~1550nm
Insertion loss	Typical value≤0.15,maximum≤0.30
Return Loss	≥50dB
Insert core diameter	∮1.25mm
Insert core parameter	Aperture::125.5+1/-0μm,Concentricity:≤1.0μm
Durability	1000 times plug
Suitable for optical cable diameter	∮2.0mm,∮3.0mm,
Working temperature	-20℃ to +70℃
Storage temperature	-40℃ to + 85℃

Ordering Information

Connector	Material	Length	Fiber Type
SC	LSZH	1M	S1
FC	PE	3M	S2
LC	OFNR	5M	S3
ST			S4

Connector End A - Connector End B,

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length

*Connector End A *Connector End B *Jacket Cable *Cable Diameter *Fiber Count

ASC = Aangle SC ASC = Aangle SC V = PVC S = 3.0 mm 001 = 1

AFC = Aangle FC AFC = Aangle FC L = LSZH T = 2.0 mm 002 = 2

ALC = Aangle LC ALC = Aangle LC R = OFNR M = 1.6 mm

USC = Ultra SC USC = Ultra SC P = OFNP J = 0.9mm

UFC = Ultra FC UFC = Ultra FC E = PE

UST = Ultra ST UST = Ultra ST U = TPU

ULC = Ultra LC ULC = Ultra LC

XXX = NC

*Fiber Type *Multimode *Cable Length

S1= OS1 PSC = SC MM 0050=0.5M

0050 = 0.5M PFC = FC MM

S2= G.652D PLC = LC MM

S3= G.657A1 PST = SC MM

S4= G.657A2

M1= OM1

M2 = OM2

M3 = OM3

M4 = OM4

M5 = OM5

FAQ

1. Are you manufacturer?
Yes!

2. How about the quality?
Our company's products are through the quality of the test, the indicators have reached the international standard.

3. Which currencies are supported?
Dollar, euro, RMB

4.What are the after-sales service?
In the face of service and quality problems,can be settled through friendly consultations,
as far as possible in accordance with customer needs, meet customer needs, meet product quality problems, we can free replacement of new products!

5. How does your factory do the quality control ?
Every product will be fully assembled and carefully tested before packing and shipping.

Thank you for your kind Visiting, Any question please contact me!
