FC APC G.657A2 0.9mm Simplex Pigtail Fiber Optical Patch Cord

Description:

Simplex cable assemblies are offered with a variety of combinations. Connectors include SC, FC, ST and LC. 3.0 mm, 2.0 mm, 1.6 mm, 1.2mm and 900μm simplex cables in PVC, OFNR, LSZH, OFNP jackets and G.652D, G. 657A2 fiber types are available.

Features:

• Low insertion loss & High return loss
• Connectors compliant with Telcordia GR-326
• Cable compliant with Telcordia GR-409
• Mechanical performance compliant with IEC 61754-4
• RoHS compliant - Riser, Plenum, and LSZH rated cables available

Applications:

Building interconnections (campus LAN)

Connector end in optical distribution boxes and termination boxes

Trunk lines direct to telecommunications closet

Cross-connect in outdoor closet

Distribution connect in central office ODF / MDF

Fiber patch panels within communications closets

Links between Internet electronic equipment (SFP module, Switch, OLT, ONU etc.), Cable TV optical equipment (Transmitter, EDFA, Node, etc.) and fiber patch panels

Specifications:

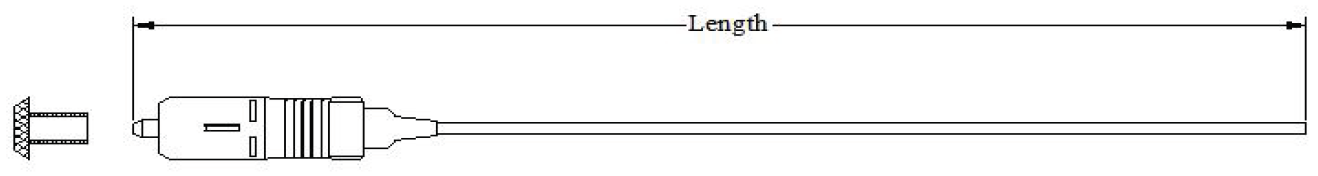

Dimensional Diagrams (SC Series)

• SC 900μm Simplex Pigtail

• SC 1.2mm, 1.6mm, 2.0mm & 3.0mm Simplex Pigtail

• SC 1.2mm, 1.6mm, 2.0mm & 3.0mm Simplex Patch Cord

Order information:

Connector End A - Connector End B,

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length

Example:

SC/UPC-SC/APC,

LSZH, 3.0mm, Simplex, G.657A2, 5 meters

Indoor patch cord
