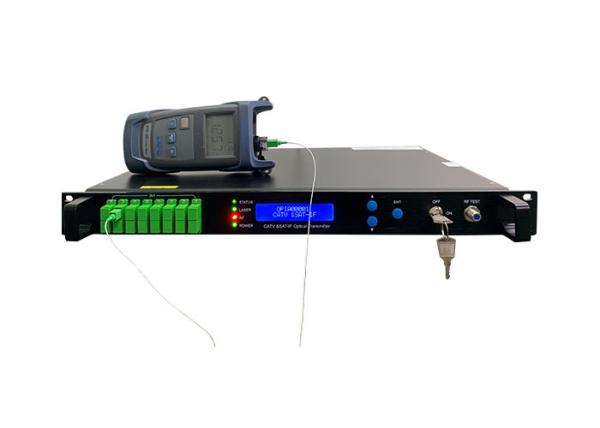

13DB Satellite CATV Optical Transmitter

Ask Lasest Price
Brand Name :	Yogel or OEM
Model Number :	TX100
Certification :	ISO9000
Price :	Negotiate
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	1000 pcs/ month
Delivery Time :	3-5 days after despoit

Add to Cart

Product Details
Company Profile

13DB Satellite CATV Optical Transmitter

Satellite Optical transmitter SAT+CATV TX 1310nm 13DB for CATV solution

Products Description

Optical Transmitter adopts high-linearity butterfly DFB laser which is directly modulated to transmit 47-862MHz and 960~2600MHz signal in a single fiber Optical Transmitter can choose ITU standard wavelength for DWDM system to extend and update the networks.

It can be amplified by EDFA and EYDFA for huge FTTH system. It can be Compatible with any FTTx PON technology to realize

the combination of CATV,DVB-S , Internet and FTTH. Optical Transmitter adopts 19” standard rack, the parameters of the machine

is controlled by micro-processor, and the status and fault alarm are displayed by the LCD in the front panel. Standard RJ 45 supports

snmp management. The built-in laser APC, ATC control circuit assures the long life of the laser and reliable work.

SAT-IF adopts high-linearity IF driving circuit with AGC to ensure the high quality transmission of Analog TV,

Digital TV(DBS-C,DBS-T and Satellite TV in a single fiber

Features

1 Adopt low noise imported DFB laser.

2 Superior pre-distortion circuit design, in achieving high standards of CNR value, there are still perfect CTB and CSO performance value.

3 Intelligent fan, it began to run when the chassis temperature reaches the set 32 ~ 35 ℃.

4 AGC control, so that different RF input level can still maintain a considerable output performance.

5 VFD or LED display, with laser monitoring, digital display, fault alarm, network management and other functions; once the laser operating parameters deviate from the software set the allowable range, will alert.

6 With standard RS232 interface for local network management and monitoring of computers.

7 With standard RJ45 interface support SNMP for remote monitoring.

8 High-quality switching power supply, can be 90V ~ 265V AC or -48V DC work.

9 Single input with frequency 47～2600MHz.

10 CATV and SAT-IF signal can be transmitted in a single fiber

11 It can be amplified by EDFA and EYDFA, compatible with any FTTX PON technology

Parameters

S/N	Items	Technical Paramters					Unit		Remarks
		Min		Typical	Max
Optical Parameters
5.1.1	Working Wavelength	1300		1310	1320		nm	Choosed by customer
		1540		1550	1563		nm	Choosed by customer
5.1.2	Output Power	8			30		mW	1310nm
		4			10		mW	1550nm
5.1.3	Optical Isolation	30					dB
5.1.4	Optical Return Loss	50					dB
5.1.5	Fiber Connector			FC/APC,SC/APC				Choosed by customer
CATV RF Parameters
5.2.1	Bandwidth		47		862		MHz
5.2.2	Input Range		75		85		dBuV
5.2.3	Flatness		-0.75		+0.75		dB		47~862MHz
5.2.4	C/N		51				dB		Test standard GT/T 184-2002
5.2.5	C/CTB		63				dB
5.2.6	C/CSO		58				dB
5.2.7	Input Return Loss		16				dB
5.2.8	RF Port			F Imperial
5.2.9	Input Impedance			75			Ω
SAT-IF Parameters
5.3.1	Working Bandwidth		5		2600		MHz
5.3.2	Input Range		-25		-5		dBm
5.3.3	Flatness		-1		+1		dB		950~2600MHz
5.3.4	Input Return Loss		10				dB
5.3.5	RF Port			Imperial
5.3.6	Input Impedance			75			Ω
5.3.7	Tuner Feeding Vol			0/13/18			V
5.3.8	Tuner Feeding Cur				300		mA
General Parameters
5.4.1	Power Supply Vol			A:AC160V - 250V(50 Hz)；B:DC48V			V
5.4.2	Power Consumption					30	W
5.4.3	Working Temp		0			50	℃
5.4.4	Max Working Humidity		5			95	%
5.4.5	Storage Temp Range		-40			60	℃
5.4.6	Size			1U 19” 48339544			mm
5.4.7	Net weight(Kg)			5			Kg
