Full Services Platform

FSP Description

FSP Platform is a 2RU&1RU wide band optoelectronic transmission platform with strong versatility, high installation density, powerful, flexible combination, and diverse communication management modes, including multiple service cards including DLT, EDFA, EYDFA and Transmitter. Fan cards and pluggable dual power supplies including -48VDC or 110-220VAC. GPP can be used at many application scenarios in which end users can select different options to combine the following service cards according to the fiber network design requirements:

FSP Features

• Suitable for CATV, PON system or video combiner
• One port output steady signal power of CATV: 19dBm(18dBm~20dBm)
• Operation temperature range: -5℃ to +65℃
• Power Supply: dual -48V DC or 220VAC
• All front panel access, and works for 19’ racks
• The Fan , power supply and EDFA,EYDFA can be plugged in 2U/1U rack, which is very convenient for the maintenance
• Support ETH, RS232 and Monitor ports
• Network Management interface supporting SNMP via ETH port
• APC(Automatic Power Control)optical output
• High power components, high reliability, low noise

Specifications

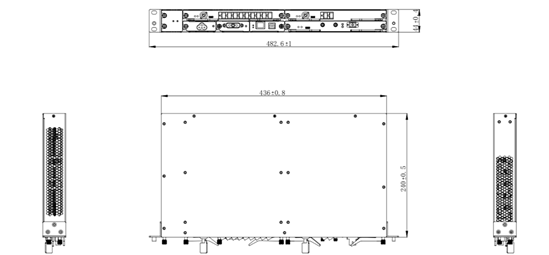

1U
