10G IP Distribution Line Terminal

Ask Lasest Price
Brand Name :	YOGEL
Model Number :	DLT-WID6548
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50pieces per week
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

10G IP Distribution Line Terminal

10G IP Smart Distribution Line Terminal

Description

DLT WID6548 IP Smart Distribution Line Terminal, is the key equipment of all IP 10G I-PON network. It converges Live TV, OTT TV, Internet Services and distributes all video stream to 10G broadcast channel or 1490nm downstream of GPON channel according to operation strategy that is defined by software.

10G IPVB Overlay G/EPON

DLT WID6548 integrates 10G broadcast channel and G/EPON bidirectional access channel. It can smooth upgrade to an 12.5Gbps/1.25Gbps asymmetric broadband access network from G/EPON, so greatly extend network life time and supports all IP services with the lowest CAPEX and the lowest OPEX.

DLT WID6548 has a powerful multi-core CPU processing capability to complete the adaptation of the various existing services (TV live, SDV, VOD, OTT TV) without modifying the service platform, thereby greatly increasing the compatibility of the I-PON network and the convenience of deployment.

DLT WID6548 supports 4-Ports 10G and 8-Ports GE interfaces, greatly expands the downstream bandwidth of the system.

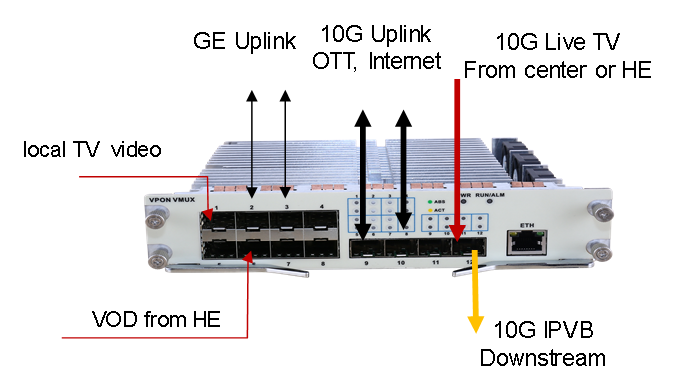

Interface Demonstrate (Defined by Software)

Features

Intelligent distribution of downstream transmission of 10G IP data flow, supports 10G asymmetric two-way broadband access
Smooth upgrade G/EPON network to 10G PON network
Support IP broadcast technology: 10G video broadcast channel for 4K/8K and VR.
Asymmetric two-way broadband access Over Dual channels: downstream 12.5Gbps and upstream 1.25Gbps.
Supports all IP services: TV live, SDV (Switch Digital Video), VOD, OTT TV and Internet services.
Support WEB, SNMP, TELNET multiple management methods.

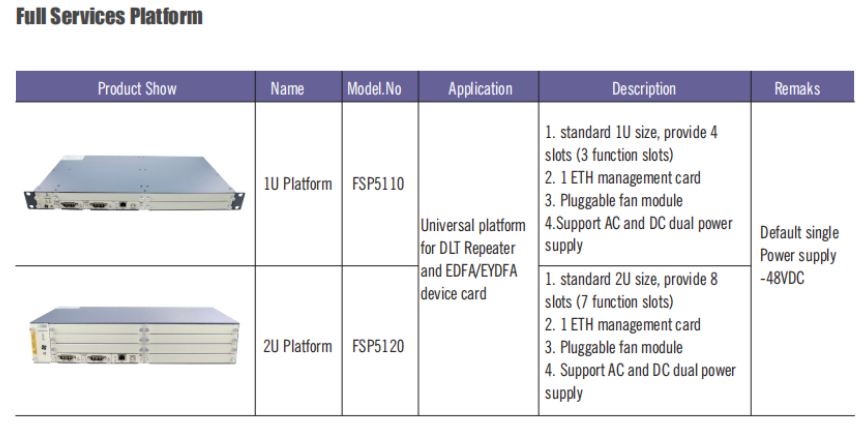

Note:DLT card need to work with Full Services Platform and occupy 2 slots.

Specification

Basic Specification
Interface	8 GE Ethernet interfaces(support optical or copper transceiver)
	4 10GE SFP+ ports( 10.3125Gbps optical transceiver)
	1 10/100/1000M local management Port.
	Supports ICMP PING access and ARP, NAT protocols
	Supports statistics of unicast, multicast, broadcast packet flow
	Supports optical/electric module status alarm
Message Processing	Supports Deep Packet Inspection of TCP and UDP
Processing Speed	48Gbps
Processing delay	<20ms
Priority	Strict business-based priority (SP) guarantee
Back up	Supports dual service cards backup
Services Specification
Live TV broadcast service	Support IGMP protocol( V1, V2, V3 )and parameter settings
Live TV broadcast service	Supports live TV traffic monitoring
VOD Service	Supports up to 64 IP address settings
	Supports multi-channel unicast address conversion to multicast address
	Supports area code and frequency table setting
	Supports VOD on-demand total traffic monitoring
OTT TV Service	Supports automatically adjusts MTU size according to network communication
	Supports OTT total flow threshold setting, automatically switch to EPON/GPON channel if the threshold is exceeded
	Supports TCP, UDP OTT services, meet the tunnel transmission of unicast video stream
	Supports OTT video source filtering network segment setting
	Supports single OTT on-demand user traffic monitoring
	Supports OTT total traffic monitoring
Network management function	Supports configure the services functions, view the status, and view the alarm information
	Supports Online/remote upgrade of the network management software
	Supports multiple management methods of WEB, SNMP, TELNET
Working Environment
Operating temperature	0°C~45°C
storage temperature	-20°C~85°C
Working relative humidity	10%~90%
Storage humidity	5%~85%
