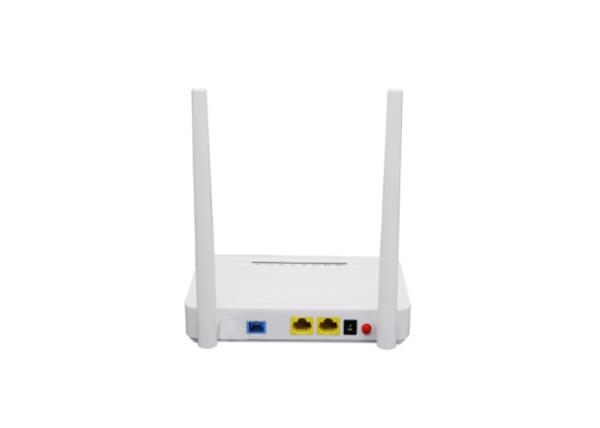

Gpon onu device 1.25g 2port epon gpon ont routercompatible fiberhome ZTE Huawei

1. Overview

The EPON ONU series designed and produced by our company,including Data, Data+WIFI, Data+CATV,

Data+WIFI+CATV type of ONU. GPON ONU 1GE is a pure data GPON terminal product with high reliability, high quality, easy
management, flexible upgrade and expansion, the equipment's functions and performance indicators are in line with

the ITU-T G.984 standard

2. Features

◼ Full compatible with ITU-T G.984
◼ Support Auto-negotiation and MDI/MDIX
◼ Support the Ethernet interface rate, working mode and flows control
◼ Support packet filtering and anti-illegal message attack protection
◼ Support VLAN tagged label processing, traffic classification etc.
◼ Support DHCP Option60 reporting the location information of the Ethernet
interface
◼ Support IGMP Snooping
◼ Compliant with 802.11 b/g/n wireless standard protocol
◼ WAN supports routing mode or bridge mode or routing/bridge hybrid
mode

4. Functions

GPON Feature

Compliant with ITU-T G.984 GPON standard

FEC (Forward Error Correction) in both upstream and downstream Dynamic bandwidth status report

802.1p mapper for upstream

QoS scheduling based on SP or WRR between GEM port and T- CONT

Downstream multicast GEM port and broadcast GEM port

Gateway Feature

WAN support Router and Bridge mode Router mode supports PPPoE/DHCP/ static IP WAN support Internet,IPTV,TR069

LAN supports DHCP and static IP Support NAT and NAPT

Support UPnP
