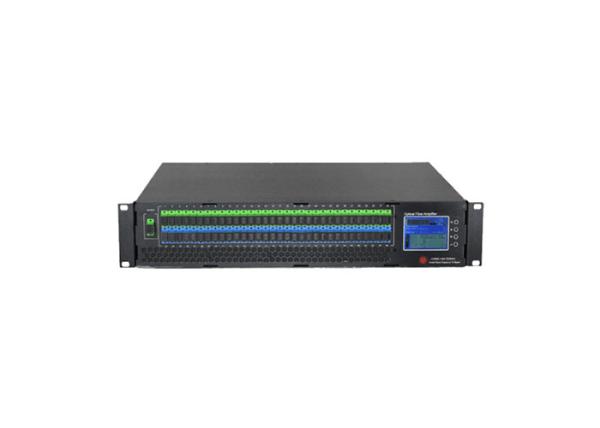

High power 1550nm 64 port fiber amplifier

1.0 Overview

These series of 1550nm ytterbium-doped fiber amplifier is designed and manufactured according to the communication level standards, amplifying the 1550nm optical signal, which is mainly used for TV image signal, digital television signals, telephone voice signals and data signal for a long distance optical fiber transmission.

2.0 Features

■ Using erbium ytterbium co-doped double-clad fiber technology

■ Output port:16~64；

■ Output power:Max is 8W；

■ Low noise:＜5dB(input 0dBm )；

■ Perfect network management interface,national standard SNMP network management;

■ Using a dedicated server mature dual power supply hot backup structure, with only controlled by a microcomputer temperature control system, improve system reliability;

■ 0-4dB adjustable output power;

■ 2.8-inch large TFT true color display

3.0 Technical parameter

4.External function

2.8-inch large TFT true color display.
Exit or Cancel.
Move up.
Move down.
Shift.
Optical signal output port: This interface is the output port, connector is SC / APC, 16-64 ports are optional. If there are other specifications when specified by the customer. (1550/1490/1310nm in)

Warning: After the device is working properly, this port has invisible laser beam is emitted, the port should be avoided Alignment of the body or to the naked eye, so as to avoid accidental injury.

7) Optical signal input port: This interface is the input port, connector is SC / APC, If there are other specifications when specified by the customer.(1550nm in)

8) WDM input port: This interface is the WDM input port, connector is SC/PC, If there are other specifications when specified by the customer.(1490/1310nm in)
