Optical Handheld Tester SM MM 1310/1550nm Wavelength OTDR

Ask Lasest Price
Brand Name :	YOGEL/OEM
Model Number :	YG-otdr
Certification :	ISO9000 ,ROHS,CE
Price :	Negotiate
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000pcs /Month
Delivery Time :	3-7 work days after despoit

Add to Cart

Product Details
Company Profile

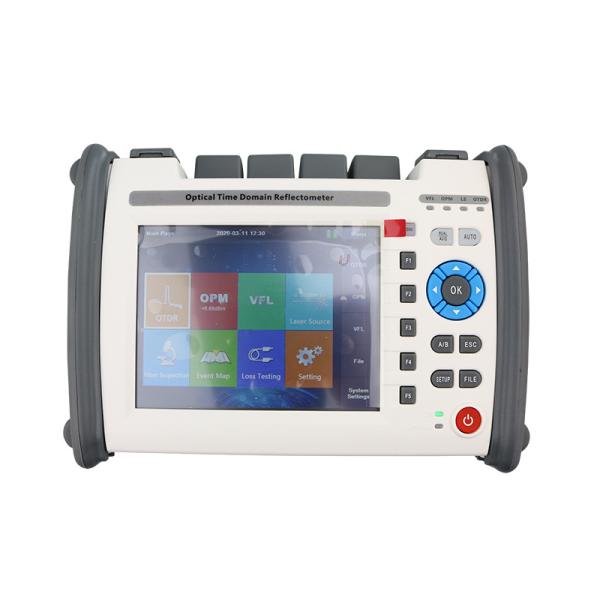

Optical Handheld Tester SM MM 1310/1550nm Wavelength OTDR

Optical Handheld Tester SM MM 1310/1550nm Wavelength OTDR

Descriptionof Handheld USB OTDR

The OTDR is mainly used to measure the parameters if opticak fibers and cables,such as length,loss,and connection quality,etc.;it can realize the accurate positioning of event points and fault points,and can be widely used in the construction,maintenance testing and emergency repair of the optical fiber communication systems as well ad the research,production and production measurement of optical fibers and cables and so on.this now OTDR also combine the OPM,OLS AND VFL module,in order ti provide you with the highest performance of solutions for installation and constructuion of fiber optica network construction and the subsequent and efficient maintenance and troubleshooting testing

Key features:

Conbine the OPM,OLS,VFL and OTDR in one tester

Simplest interface and intuitive operation

Unique dual operation mode of key plus touch screen

One-key analysis

WIth circulatoe,isolatoe,and filter which realize the online test

Specifiction

Wavelength(Max:4)	Single mode	Multimode
	1310nm,1550nm,1625nm,1650nm	850nm,1300nm
Dynamic Range(dB)	26~42dB	20dB/26dB
Event/ Attenuation Dead Zone	0.8m/4m	1.2m/5m
Minimum sampling resolution	0.05m
Maximum sampling point	256,000
linearity	≤0.05dB/dB
Loss resolution	0.001dB
Distance resolution	0.01m
Distance accuracy	±(1m+Range×3×10^-5+Sampling resolution) (Regardless of the refractive index)
Memory	>100000
Interface	USB(Type A×1,Type B×1)
Battery	Single battery capacity:7.4V/2500mAh,The standard two
Temperature	Environment temperature:-10℃~+50℃;Storage temperature:-20℃~+70℃
Humidity	≤95%(No condensation)
Size/Weight	215×155×68mm / 1.1kg(including battery)

Packing List :

Num	Name	Quantity
1	OTDR host	1
2	AC/DC Power adapter	1
3	Cortical handle	1
4	U disk (containing client simulation analysis software)	1
5	Touch pen	1
6	Date line	1
7	OTDR SC transfer interface	1
8	OPM SC transfer interface	1
9	User’s Manual	1
10	Test Report	1
11	Warranty card and certificate	1
12	Clean cotton swab	1
13	Special backpack for instrument (containing suspenders)	1
