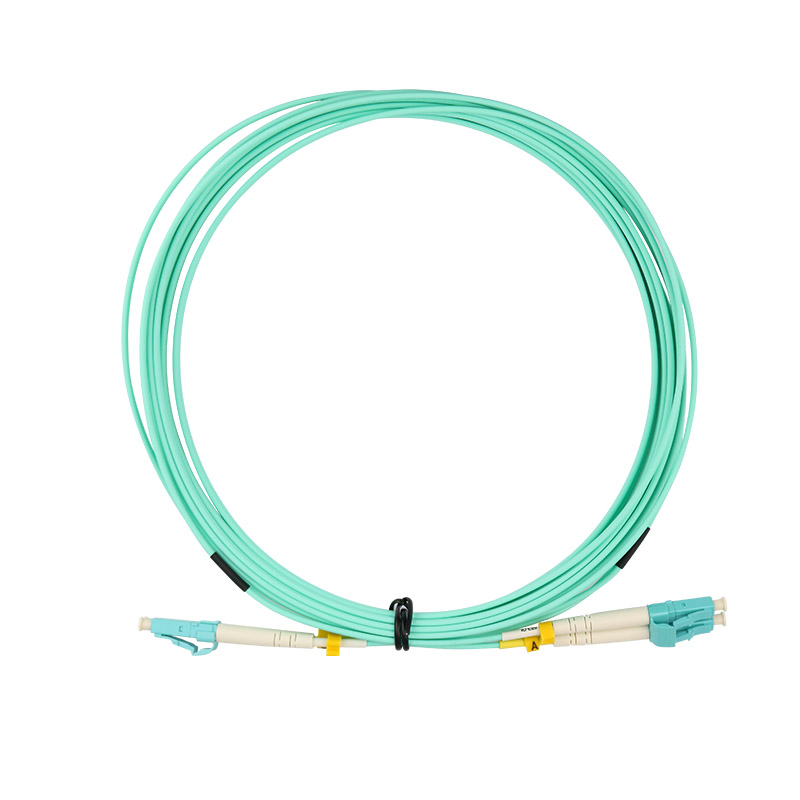

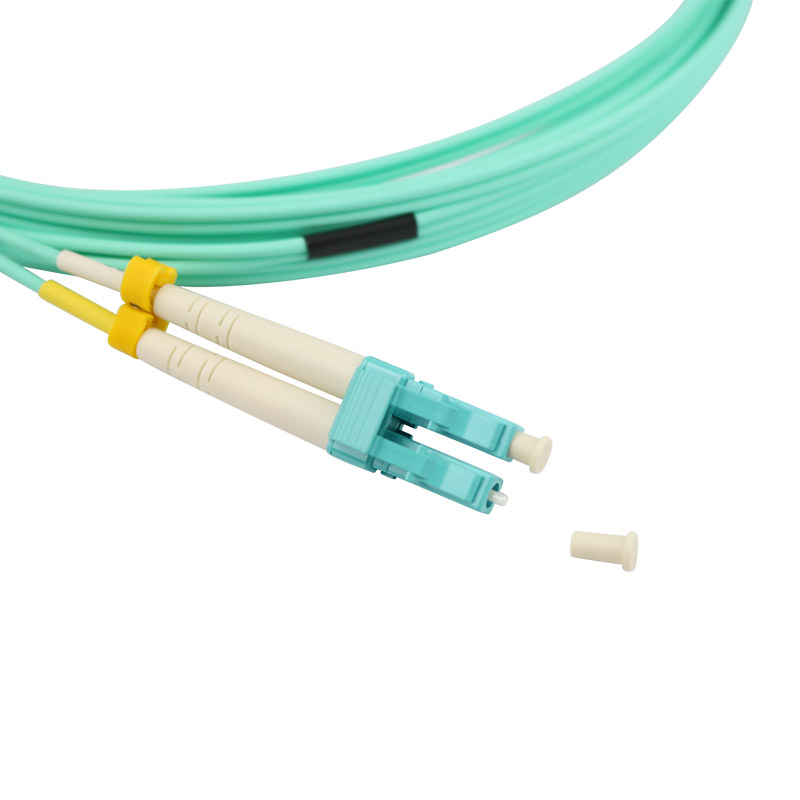

    OM3 Multi-mode Fiber Optic Patch Cables for High-Performance Networks LC Connectors Various Jacket Options and G.652D G.657A2 Fiber Types Available

    Ask Lasest Price
    Brand Name : YOGEL
    Certification : ISO9000
    Price : negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 100 pieces per month
    • Product Details
    • Company Profile

    OM3 Multi-mode Fiber Optic Patch Cables for High-Performance Networks LC Connectors Various Jacket Options and G.652D G.657A2 Fiber Types Available


    Specifications
    Duplex cable assemblies are offered with a variety of combinations. Connectors include SC, FC, ST and LC. 3.0 mm, 2.0 mm Duplex cables in PVC, OFNR, LSZH, OFNP jackets and G.652D, G. 657A2 fiber types are available.
    Features

    *Low insertion loss & High return loss

    *Connectors compliant with Telcordia GR-326

    *Cable compliant with Telcordia GR-409

    *Mechanical performance compliant with IEC 61754-4

    *RoHS compliant - Riser, Plenum, and LSZH rated cables available

    Parameter
    ItemParameter
    Test wavelength1310/1550nm
    Insertion lossTyp. ≤0.15 dB, Max. ≤0.30 dB
    Return Loss≥60 dB
    Repeatability≤0.10 dB
    Changeability≤0.20 dB
    Durability(1000 Mating)≤0.20 dB
    Operation temperature-40 ~ +80℃
    Storage temperature-40 ~ +85℃
    Connector endLC/UPC
    Cable jacketLSZH
    Jacket colorYellow
    Cable diameter2.0mm
    Fiber countDuplex
    Fiber typeG657A2
    Cable length1.2.3 3.5 5 M

    Applications:


    Building interconnections (campus LAN)

    Connector end in optical distribution boxes and termination boxes

    Trunk lines direct to telecommunications closet

    Cross-connect in outdoor closet

    Distribution connect in central office ODF / MDF

    Fiber patch panels within communications closets

    Links between Internet electronic equipment (SFP module, Switch, OLT, ONU etc.), Cable TV optical equipment (Transmitter, EDFA, Node, etc.) and fiber patch panels
