    Multi-Channel Fiber Optic Rotary Joint Fiber optic slip Rings

    Ask Lasest Price
    Brand Name : YOGEL
    Model Number : NO
    Certification : ISO9000
    Price : negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 pieces per week
    • Product Details
    • Company Profile

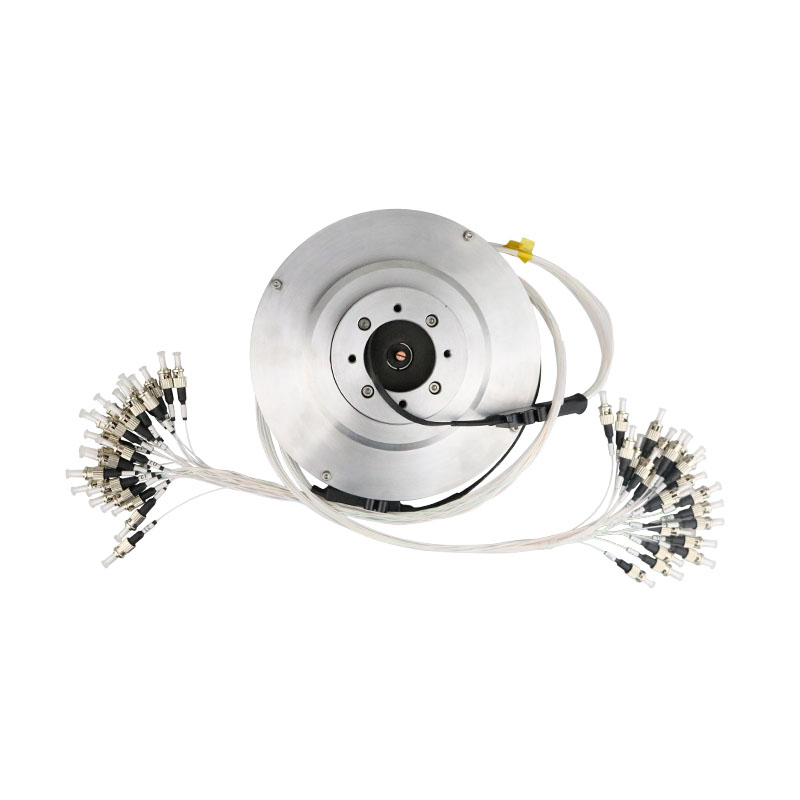

    Multi-Channel Fiber Optic Rotary Joint Fiber optic slip Rings

    Multi-Channel Fiber Optic Rotary Joint
    Product Introduction
    The FRM series is a high-density channel product that can be configured with single-mode, multi-mode, or single-multi-mode hybrid fibers.
    Products with resistance to environmental factors such as shock, vibration, high and low temperatures are available. The product line includes
    two extended models, FRMA and FRMB.

    FRMA features a tail fiber outlet and often used for 8 or more channels, with up to 31 channels available.

    FRMB features a flange port, without tail fiber FRM Series Multi-Channel Fiber Optic Rotary Joint output, and can be configured with 2 to 4 channels
    Main Technical Performance
    Indicator NameValue
    Bandwidth±50nm
    Wavelength1310/1550(SM);850/1310(MM)
    Insertion Loss (Room Temperature)
    ≤4.0dB
    Insertion Loss Fluctuation≤2.0dB
    Return Loss≥40dB(SM)
    Power Handling≤23dBm
    Tensile Strength
    ≤12N
    Rotation Speed0~ 300 rpm (higher speeds can be customized)

    Estimated Lifetime

    >100 million rotations
    Operating Temperature-20~60℃ (-40~ 85℃ optional)
    Storage Temperature
    -50~85℃
    Weight (excluding tail cable and connector)1.6kg
    Vibration and Impact StandardGJB150 Land Mobile

    Protection Class
    IP54(IP65,IP67 optional)

    FRM①-②-③-④-⑤-⑥-⑦/⑧
    Example 1:FRMA6-9/125-1310-1.2m-Φ2.0K-FC/PC Example 2:FRMB4-9/125-1550-FC/PC

    ①Model Type
    ②Fiber Type
    Operating
    Wavelength
    Tail Fiber
    A(Fork Plate Type)

    B(Fork Pin Type)
    25/400(sparse model)

    105/125(dense multi-modal model)

    200/220(dense multi-modal model)

    800/1000(dense multi-modal model)

    850

    1064

    1550
    Tail Fiber:length 1.2m,S (customer specified)
    Package:φ0.6mm,φ2mm,φ3mm,K=armor-clad
    Connector Type:FC,ST,SC,LC,N=no connector
    End Face Type:PC (flat),APC(angled)
