Simplex Large Diameter Fiber Thermal Strippers with Customized Settings

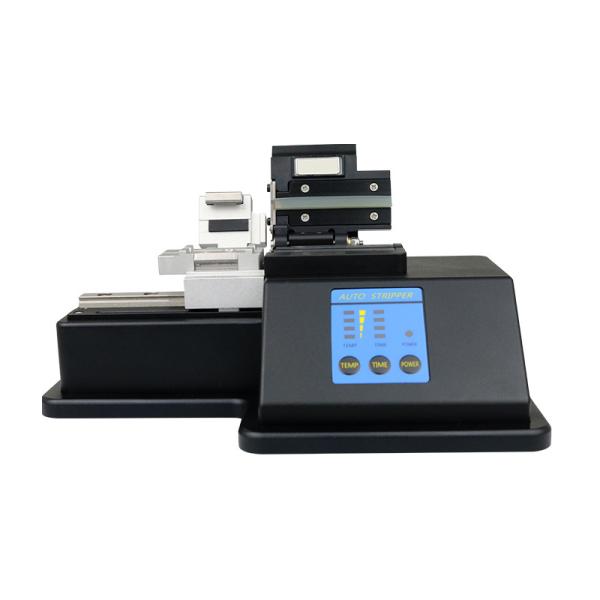

Simplex Large Diameter Fiber Automatic Thermal Stripper

Simplex large diameter fiber automatic thermal stripper ATS99-LD51 provides excellent strength performance when removing 100μm to 1000μm buffer from optical fibers. Heating temperature and duration are fully adjustable for a variety of buffer materials. It always gives customers stable operation, high quality of stripping and productivity with its auto motor and linear motion guide bearing. Self-centering blades eliminate the need for an external guide and make replacement quick and easy. Designed for use with different buffer and cladding diameter of fiber holder system, the ATS99-LD51 is an ideal solution for stripping when high strength fusion splices are a must.

Feature:

Ÿ High Quality, High Productivity, More convenience

Ÿ Field serviceable stripper blade & fiber holder

Ÿ Stabilized stripping with automatic motor

Ÿ Consistent quality of stripping.

Ÿ No Fiber Crack or Degradation & Keep High Tensile Strength

Ÿ High Tensile Strength > 4kg/f

Ÿ Applicable for simplex large diameter fiber buffer from 100μm to 1000μm

Ÿ Customized setting with adjustable heating temperature, time, stripping length:

--- Heating temperature range: 60℃～120℃

--- Heating time range: 0s~20s

--- Stripping length range: 1mm~58mm

Ÿ Chemical Strip Draw-backs Resolved (Drawback of chemical strip as below):

--- Difficult control of strip lengths

--- Chemical residues on tripped fiber end

--- Rugged shapes on strip ends

Application:

* laser welding, cutting
* Atmospheric Spectrometry
* laser cleaning
* High Power Laser Flexible Delivery

Specification:

Model No.	ATS99-LD52
Applicable Fiber	Buffered Silica Fiber
Accepted Coating Material	Acrylate
Cladding diameter	80μm to 800μm
Coating Diameter	160μm to 1000μm
Fiber Count	Single fiber (Simplex)
Stripping Length	≤30mm (adjustable)
Fiber Holder	Available Separately (Changeable)
Heater Temperature Range*	80℃, 90℃, 100℃, 120℃ (4 steps cycling adjustable)
Heating Time*	2s, 4s, 6s, 8s (4 steps cycling adjustable)
Blade life*	30,000 strip blade life for single fiber cleaves
Field replaceable blade	Yes, use RB-LD463
Language	English/Chinese
Keyboard	Temperature, Time, Power key type
Power	12 VDC, 2 A (Provided by External Power Supply)
External Power Supply	100 - 240 VAC, 1.6A, 50/60 Hz
Dimensions (W x D x H)	195(W)×115(D)×80(H) mm
Weight	Approx. 1.2KG
Operating Conditions	0 °C to 40 °C, 0% - 85% RH (Non-Condensing)
Storage Conditions	-40 °C to 80 °C, 0% - 95% RH (Non-Condensing)

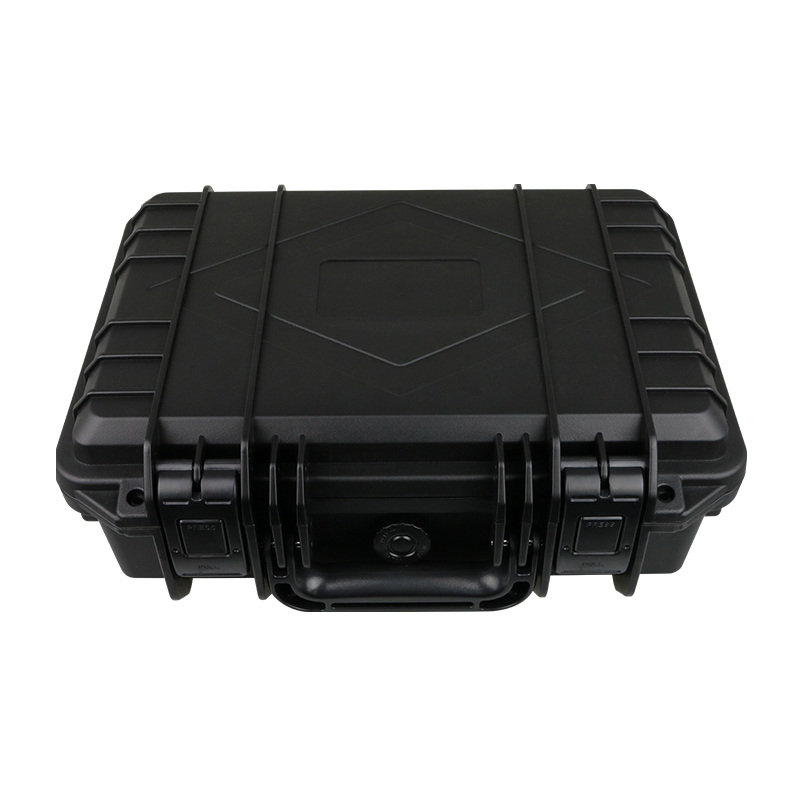

Packing
